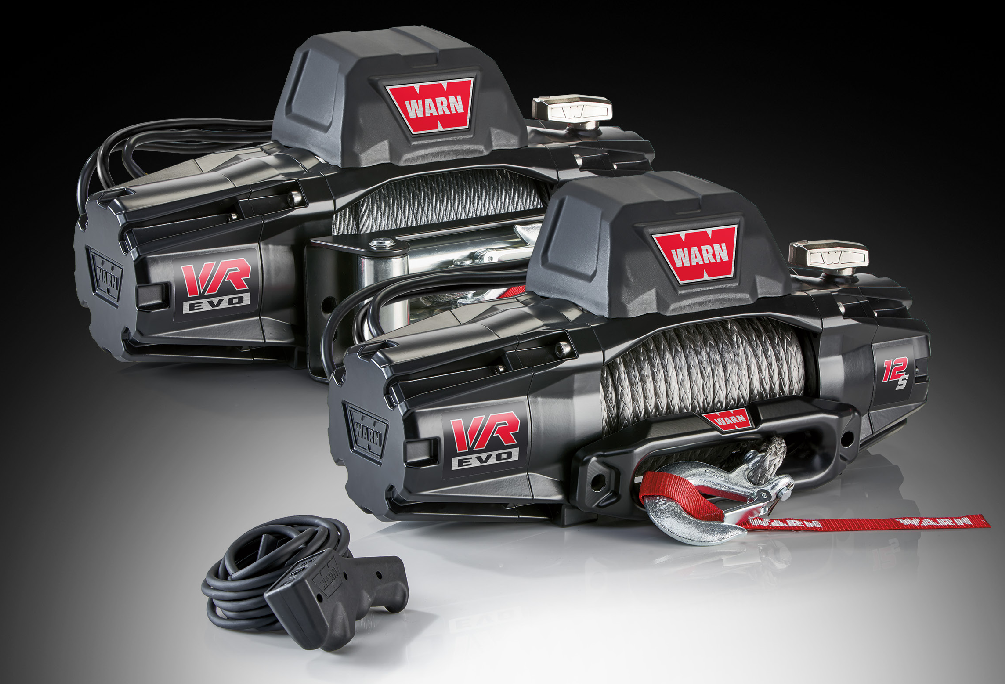

WARN VR EVO 12-S WINCH (Synthetic Cable) 103255 - Retail boxed
(Excluding Installation)
Ideal for 3/4 and 1-ton pickups and all types of large frame rigs that require longer and heavier pulls. The VR12 and 12-S feature IP68-rated waterproof construction, an ultra-reliable Albright® contactor inside a relocatable control pack, and a state-of-the-art, two-in-one remote for added ease of use and versatility. With it’s fast line-speed and lower amp draw, the VR EVO series of winches are the hardest-working standard-duty winches we’ve ever made, with tactical styling that looks great up front and at a price that won’t pull you out of your budget.
A powerful series-wound motor and planetary gear train deliver faster line speed under load, with lower amp draw
IP68-rated waterproof winch construction keeps the elements out
High-performance Albright contactor delivers maximum reliability
Control packs can be relocated for low-profile installations
Durable, one-piece cast-aluminum tie-plate for added strength and durability
Two-in-one remote with wired AND wireless options for ease of use and versatility
Available with wire or synthetic rope
Limited lifetime warranty for mechanical parts and 7 years on the electrical
Designed, engineered, and tested by WARN engineers in the U.S.A.
SPECIFICATIONS
Winch Model: VR EVO 12, VR EVO 12–S
Parts Numbers: 103254 (VR EVO 12), 103255 (VR EVO 12–S)
Rated Line Pull: 12000 lbs. (5443 kg)
Motor: 12V DC, series wound
Electrical Controls: Albright Contactor
Remote Control: 2-in-1 plug-in remote with wireless capability and 11.5’ (3.5m) lead
Gear Train: 3-stage planetary
Gear Ratio: 234:1
Clutch (freespooling): Rotating ring gear clutch
Brake: Spring Brake

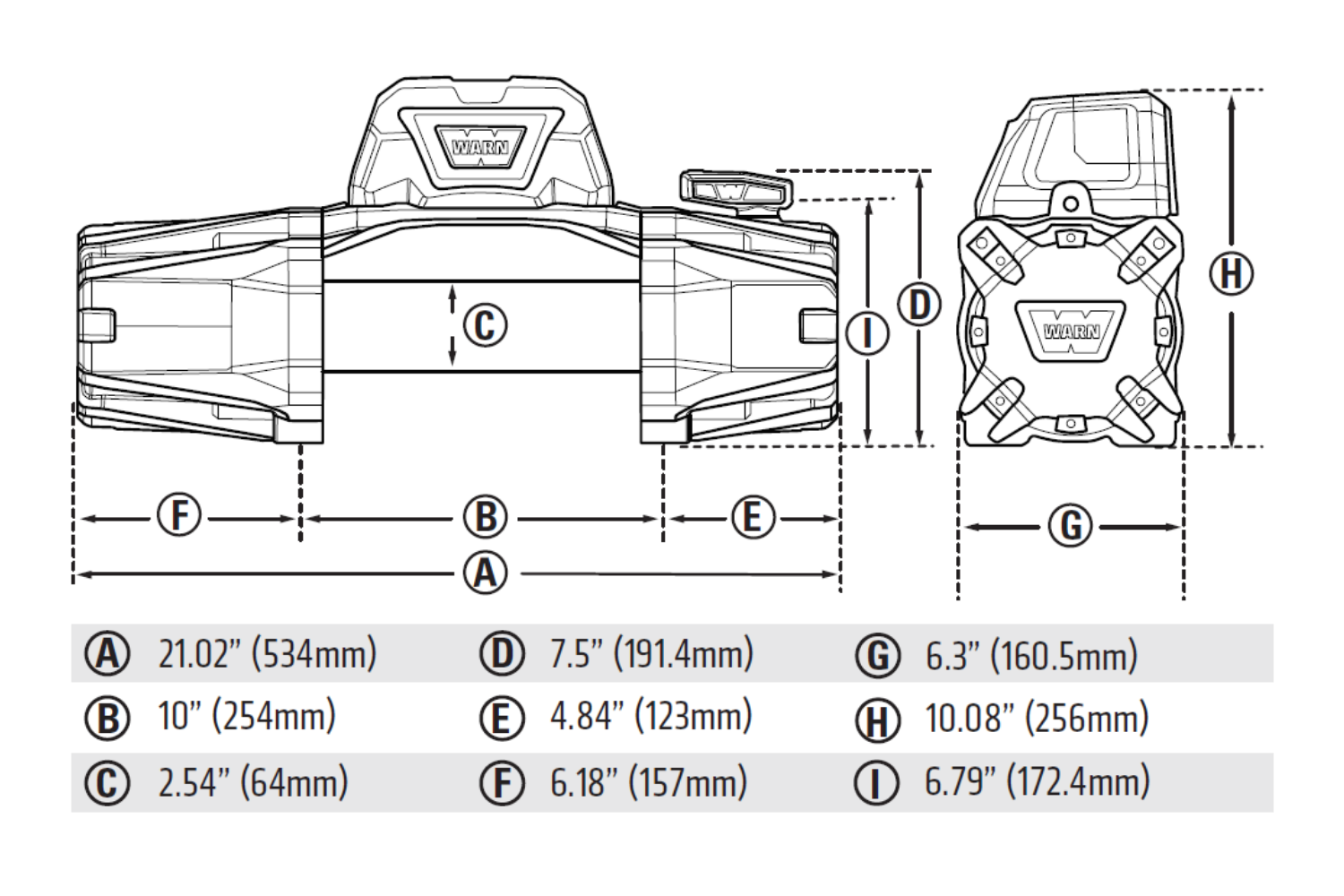

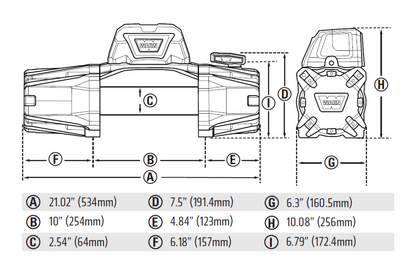

Drum Diameter/ Length: Steel and Synthetic: 2.5”/ 9.0” (6.73cm/ 23cm)
Weight: Shipping Steel: 90.81 lbs. (41.19 kg) Shipping Synthetic: 72.27 lbs. (32.78 kg) Net Product Steel: 73.61 lbs. (33.39 kg) Net Product Synthetic: 55.07 lbs. (24.98 kg)
Rope: Steel: 3/8”x 85’ (9.5mm x 25.9m) Synthetic: 3/8”x 90’ (9.5mm x 27.4m)
Fairlead: Steel: Roller, Synthetic: Die Cast Hawse
Recommended Battery: 650 CCA min. for winching
Battery Leads: 0.98’’ x 6.5’ (25mm x 2m)
Finish: Powder coating over primer undercoating
Warranty: Limited lifetime
Comes with Synthetic cable and fairlead
