Teraflex HD Chromoly Tie Rod Kit for Wrangler JK / JKU 2008-2018 (RHD 0-3" Lift)

Teraflex HD Chromoly Tie Rod Kit for Wrangler JK / JKU 2008-2018 (RHD 0-3" Lift)

Vendor
Teraflex
Regular price
R 17,995.00
Sale price
R 17,995.00
Regular price
Sold out
Unit price
per
VAT included. Shipping calculated at checkout.

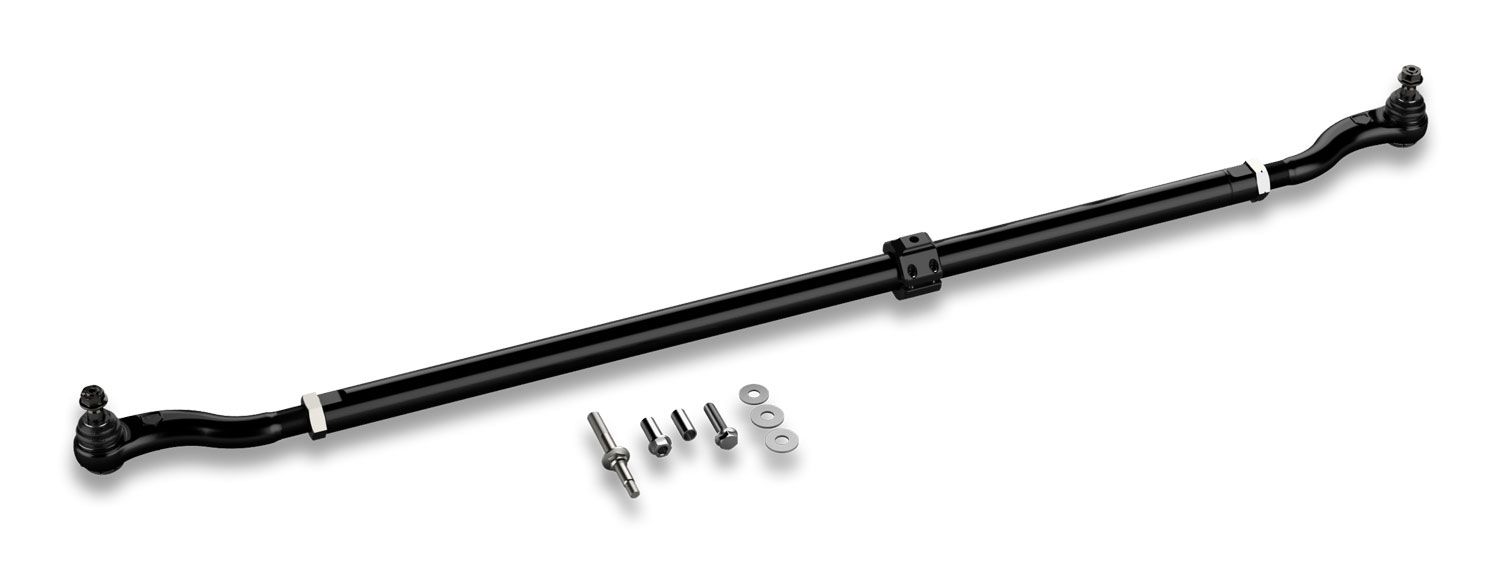

Teraflex HD Chromoly Tie Rod Kit  2008-2018 JK/JKU
Comes with Steering Stabilizer Relocation Mount Bracket Kit
0-3" Lift
1853910

The TeraFlex JK: HD Chromoly Tie Rod Kit withstands extreme conditions and abuse that typically causes factory steering components to bend and fail on lifted JK Wrangler/Unlimited models

  • HD 1-5/8" O.D. 4140 heat treated chromoly steel
  • More than 200% stronger than factory tie rod
  • Forged tie rod housing designed specifically for JK Wrangler/Unlimited
  • Tie rod end joint incorporates same features found in TeraFlex ball joints, including 4140 chromoly ball/stud and 1045 carbon steel housing
  • Features adjustable rod end preload tension to ensure long-term durability
  • The joint is pressed into the rod end housing and secured w/ a snap ring
  • Tie rod end joint rotation is limited to 14 degrees of movement to minimize tie rod roll
  • Provides clearance for factory 17" wheels

Steering Stabilizer Relocation Mount Bracket Kit – HD Tie Rod (# 1123160)

  • Fits heavy-duty 1-5/8" tie rod
  • 6061-T6 aluminum clamp and forged 10.9 grade stud
  • Moves steering stabilizer up nearly 2.5" to help reduce damage to the stabilizer shaft or body
  • Repositions stabilizer to reduce tie rod roll" associated w/ stabilizer misalignment

FITMENT INFO

  • JK Wrangler (2-door) – Right-Hand-Drive
  • JK Wrangler Unlimited (4-door) – Right-Hand-Drive
  • 0-3" Lift
  • Dana 30 front axle
  • Dana 44 front axle
