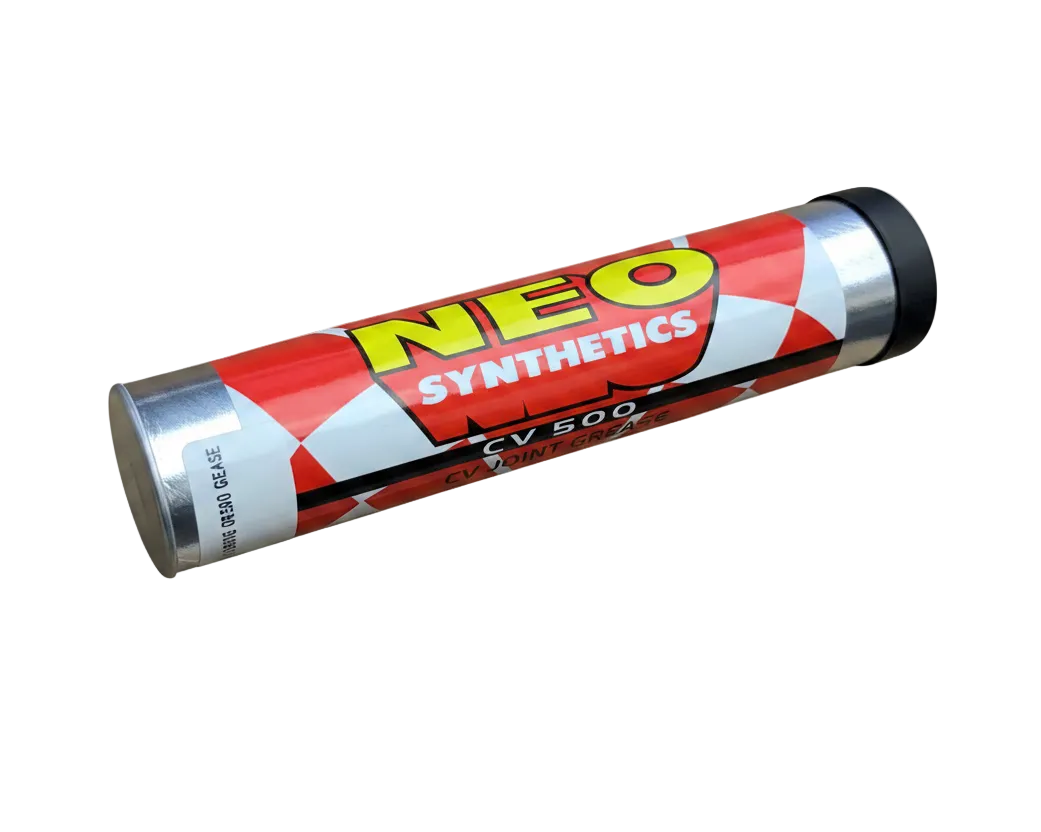

NEO CV 500 - High Performance CV Joint Grease 16oz

NEO CV 500 - High Performance CV Joint Grease
(Single Tube) by NEO SYNTHETICS

NEO CV 500 is a specialty constant velocity and articulated joint lubricant. Anti-seize lubricating paste to 1200°F

NEO CV Joint Grease 500 is a complex blend of mineral oils, synthetic esters and lubricating solids. NEO CV 500 should be used when temperature extremes are not a problem. (See special note.) Their designed use is for severe sliding contact such as extremely heavily loaded ways and guides, very slow, large-diameter ball and roller bearings, bushings, linear and oscillating mechanisms and open gears.

Articulated, CV and Universal Joints subject to the hardest shock loading, angularity and radial forces such as found on All Terrain Vehicles. Our joint grease can be used on sensitive metallurgy including copper, silver, tin, and aluminium and their alloys. Exceptionally resistant to water wash conditions including emulsions. Special compounding and lubricating solids provide superior anti-seize characteristics and exceptional acid resistance.

• NLGI Grade 2 1/2
• Worked Penetration at 60 Strokes 250
• Dropping Point, degree C 315
• Base Oil, ISO VG Grade 1000
• Pour Point, degree C, (F) +5 (+41)
• Flash Point, degree C, (F) +270 (518)
• Shell 4 Ball EP, weld load Kg Does not Weld at 800Kg
• Load Wear Index 200

Special Note: NEO CV Joint Grease should be used when extreme high and low temperatures are encountered or sustained. Elevated temperatures indicate extra protection is needed.

Applications: Vehicular uses of NEO CV Joint Grease 500 are typically constant velocity couplings (CV joints), Universal Joints and Swivel Spines. Industrial applications include linear reciprocating mechanisms, heavily loaded ways and guides, spline couplings subject to linear motion and heavy loads in either direction, press fit and assembly operations, jack screws, mechanical presses, and very slow large diameter ball and roller bearings.
