MYLAPS TR2 Transponder Kit - KARTING (inc 1 Year Subscription)
KARTING Version
The TR2 Transponder from MYLAPS is the newest and most innovative transponder for KART racing. Reliable hardware, easy subscription management via Bluetooth and the Speedhive App, and flexible subscription options to fit your needs. This Transponder includes a 1 Year subscription which can easily be extended from the MYLAPS website.
Features:
- Easy extending and syncing your subscription with the Speedhive App
- Easy and free online access to your practice and race results via the Speedhive platform*
- Fully charged in 5 hours
- Compatible with all MYLAPS (AMB) timing systems
- Accurate and reliable
- Unlimited warranty during active subscription (2 years warranty on TR2 Transponder)
* No results on Speedhive? Ask your event organizer or local track to enable Speedhive

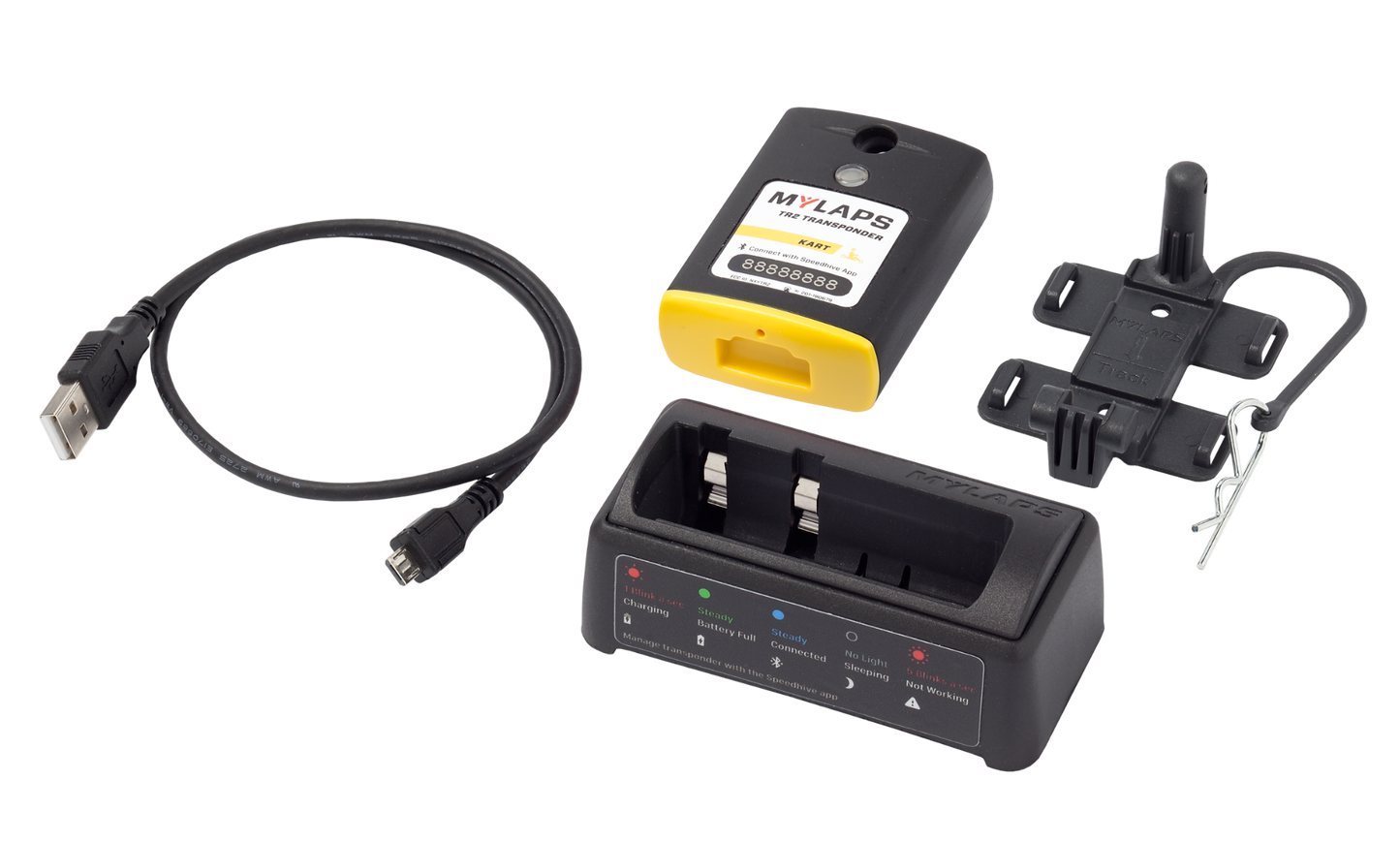

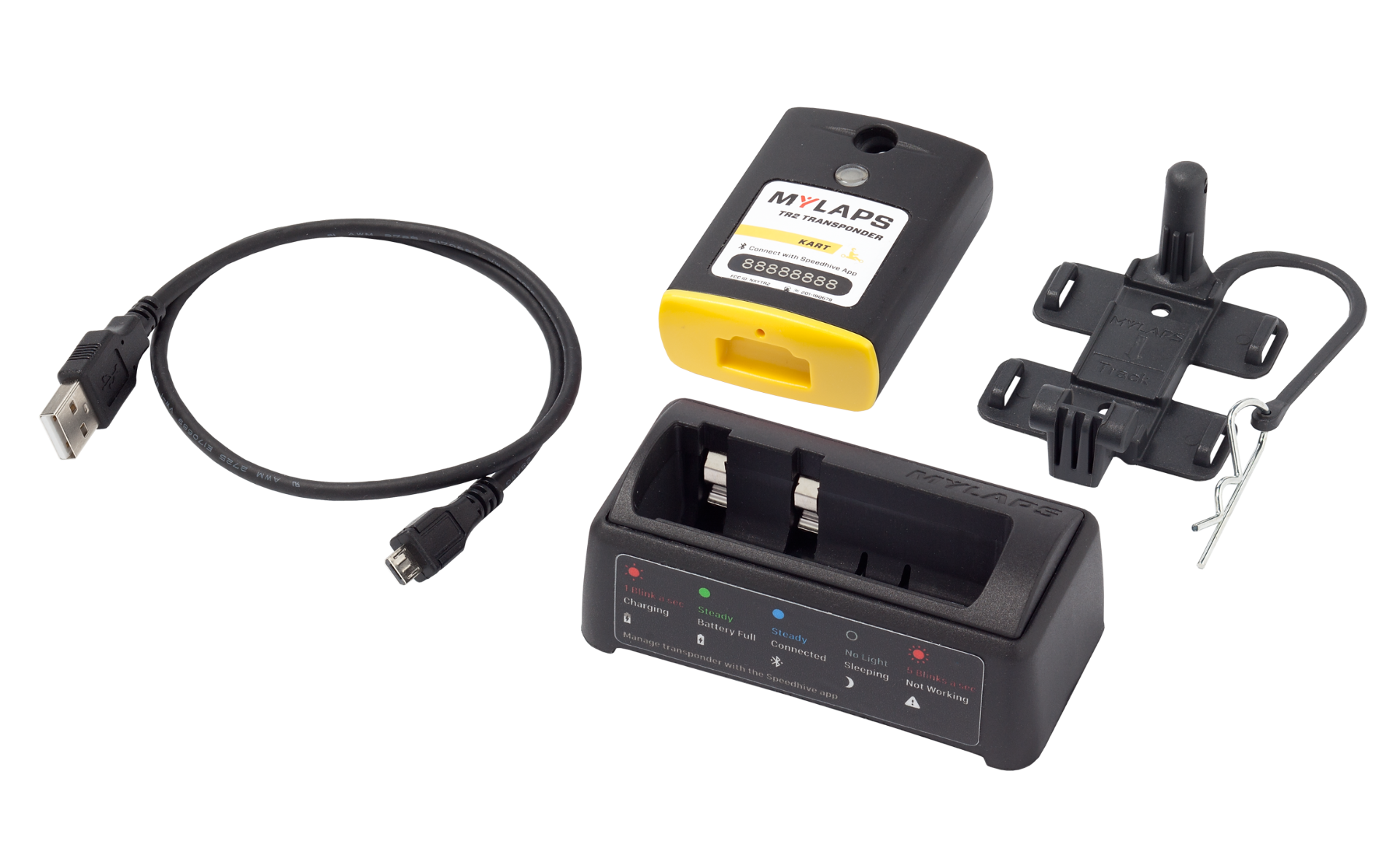

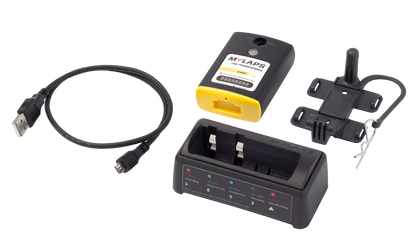

WHAT'S IN THE BOX?
-

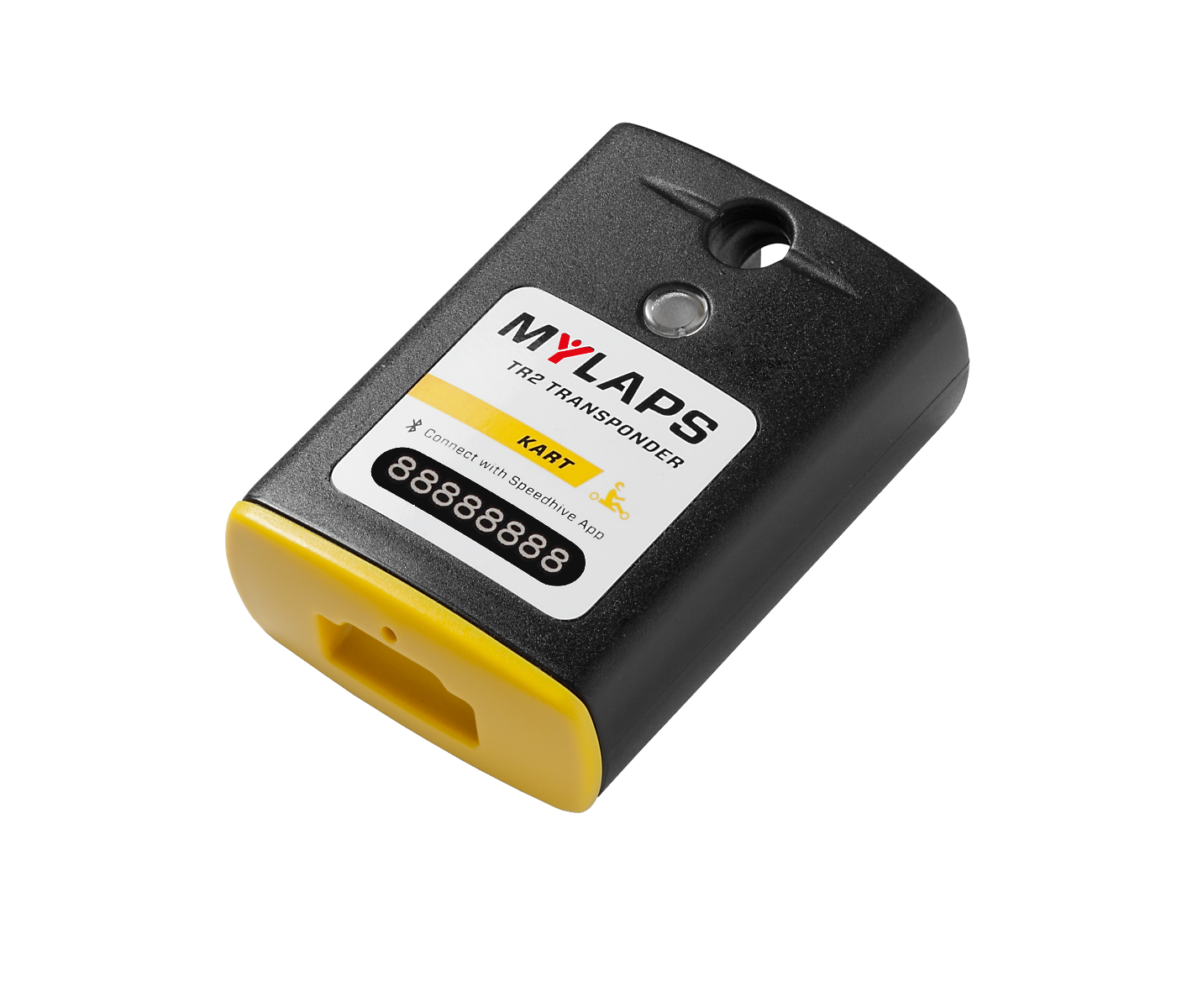

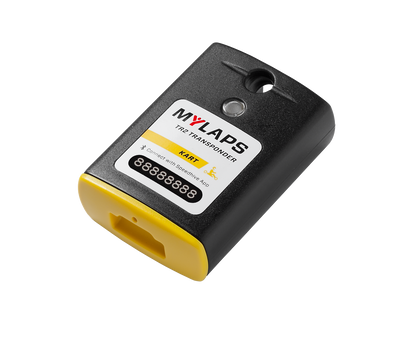

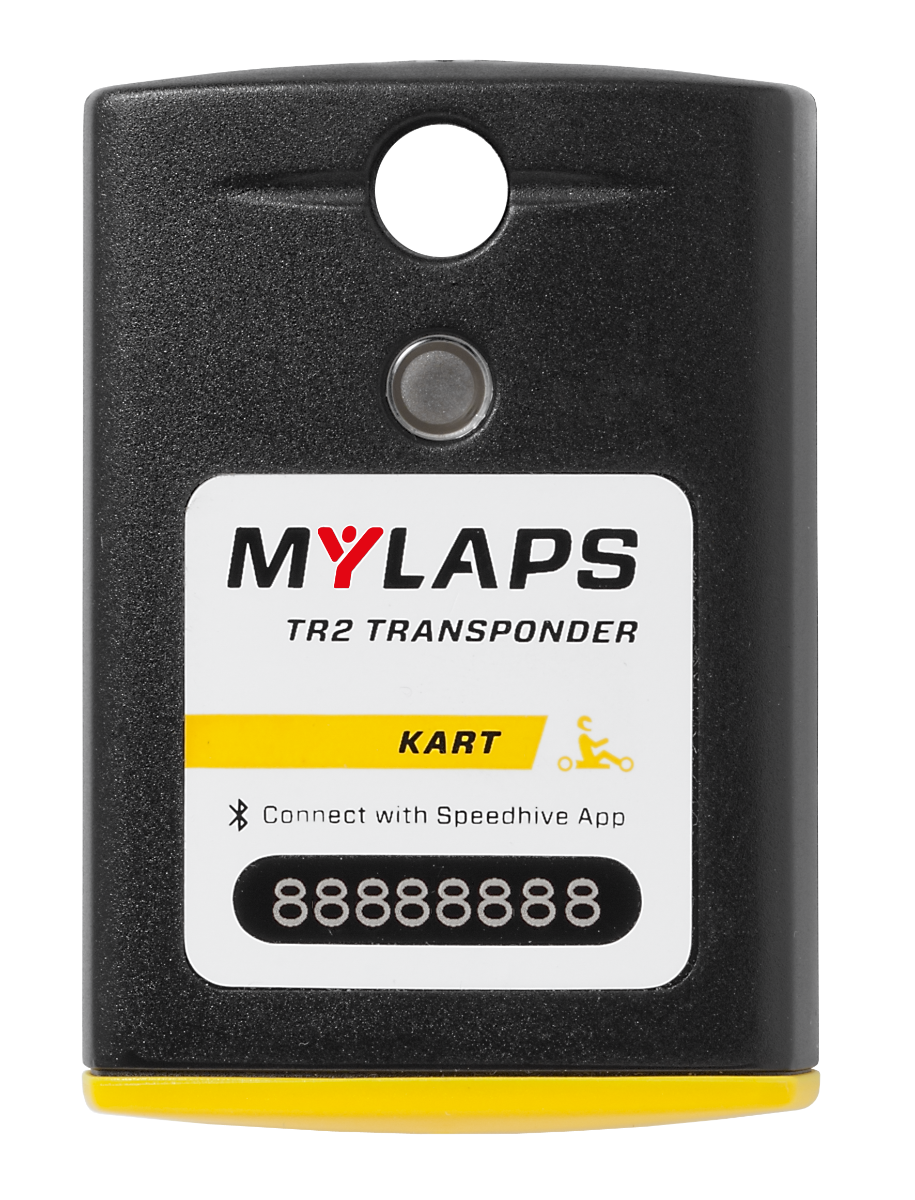

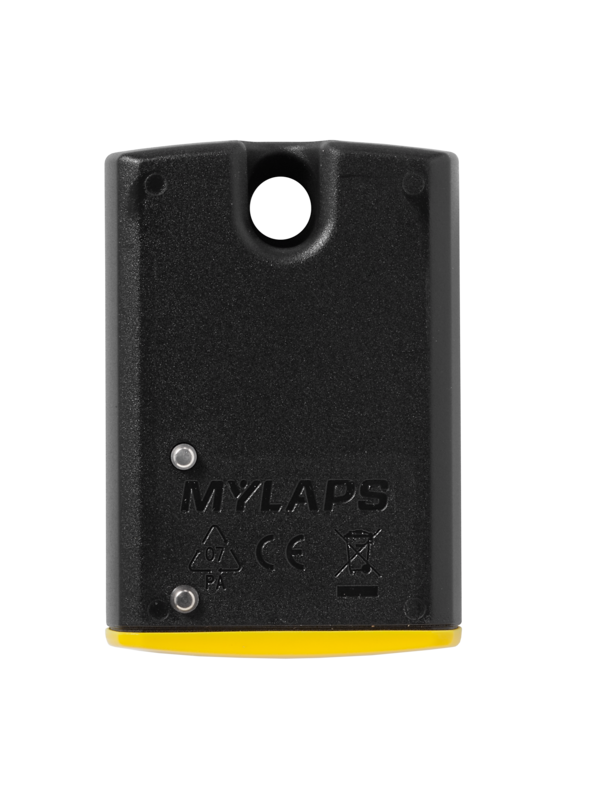

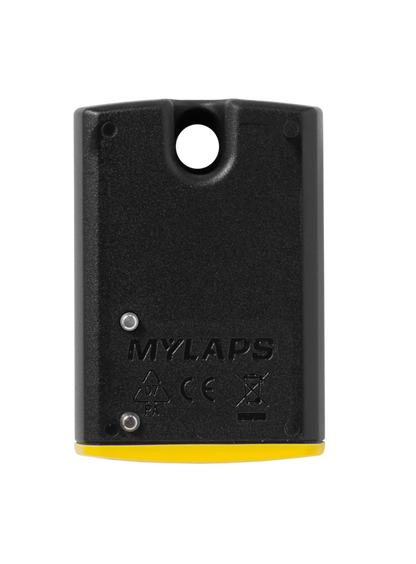

TR2 TRANSPONDER (for KARTING)
-

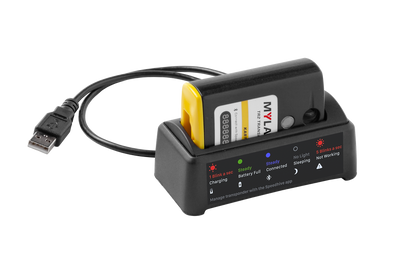

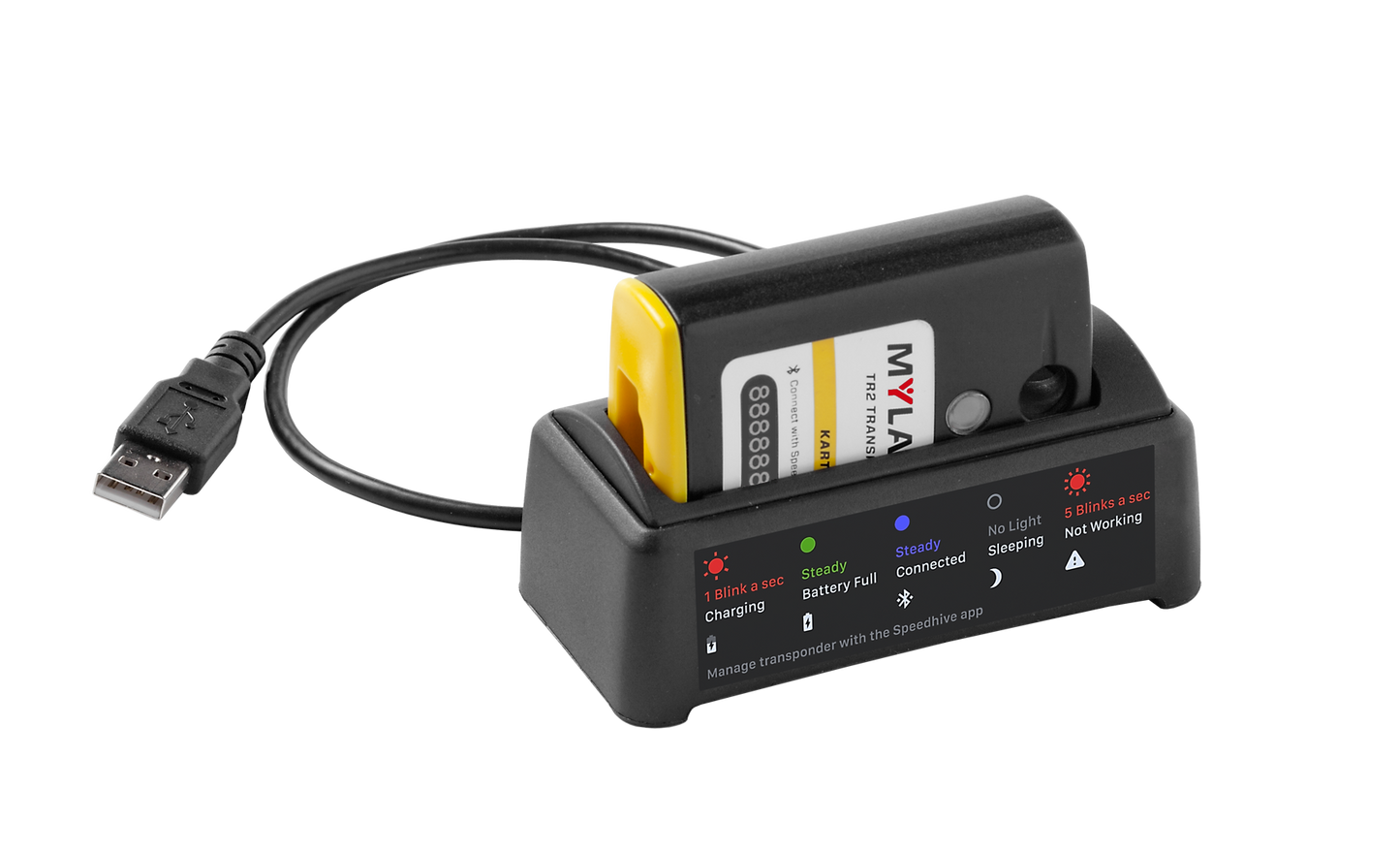

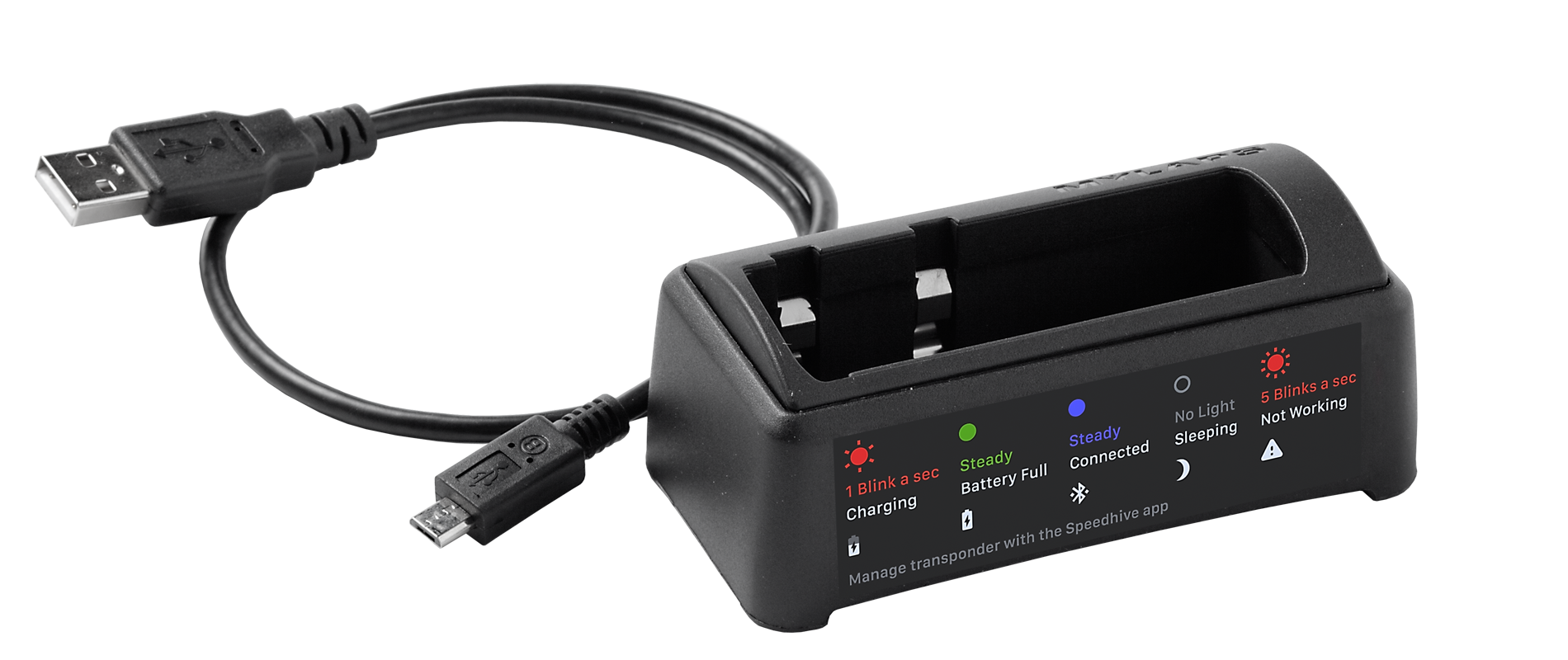

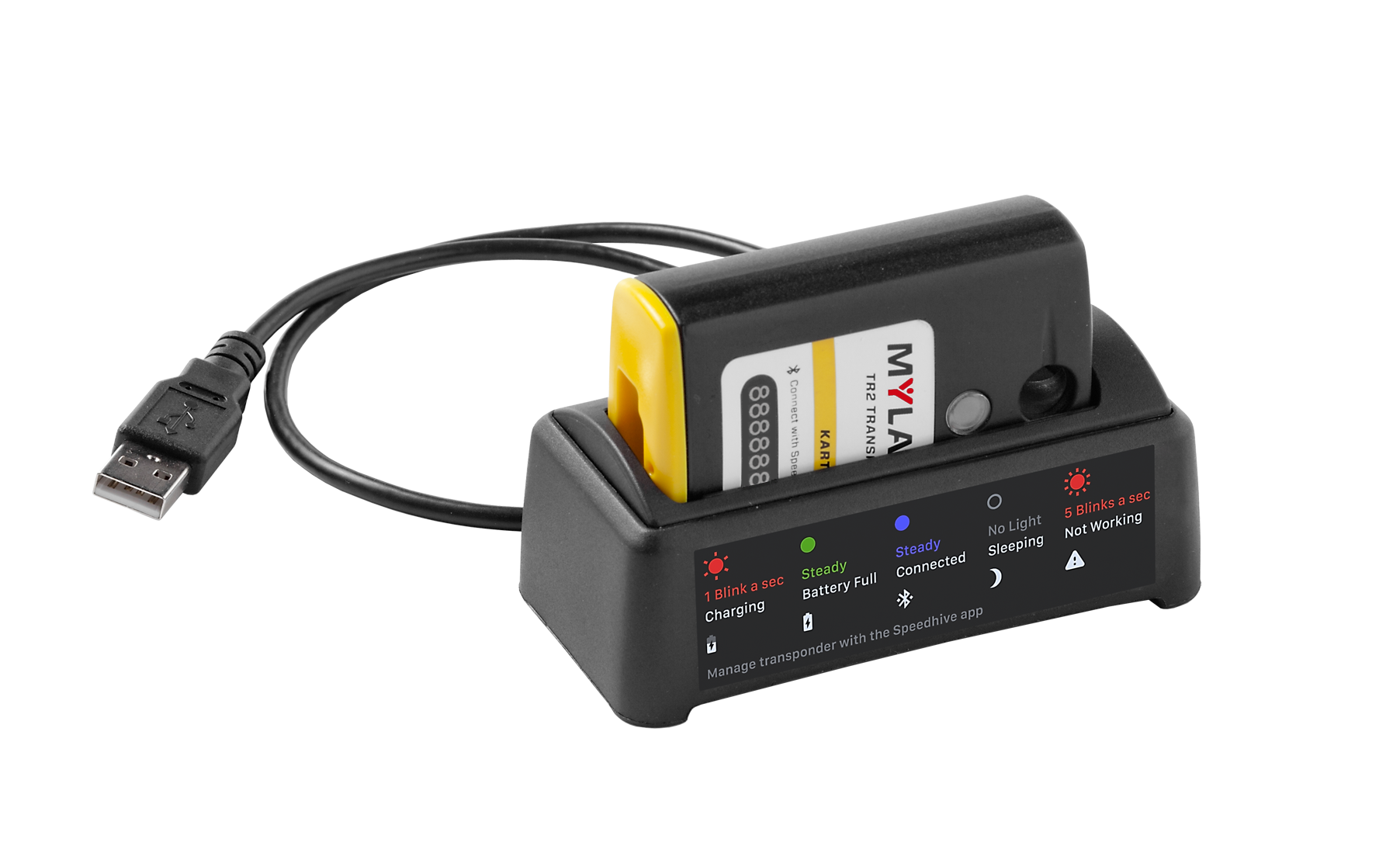

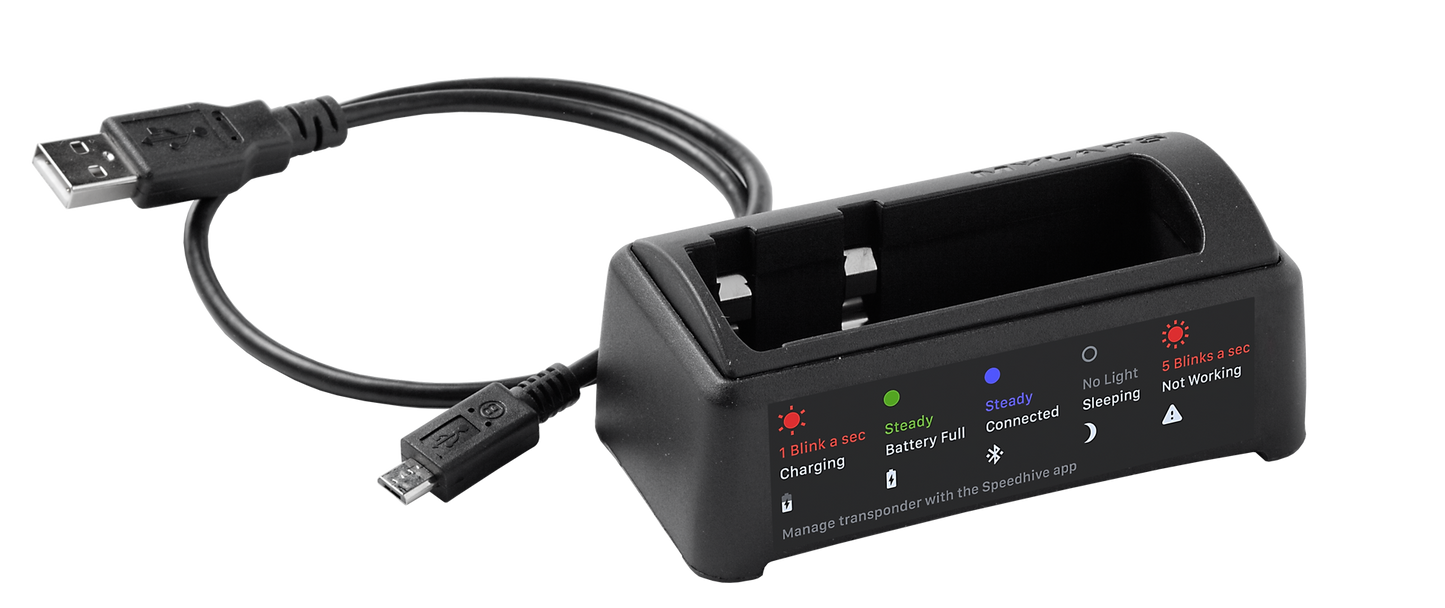

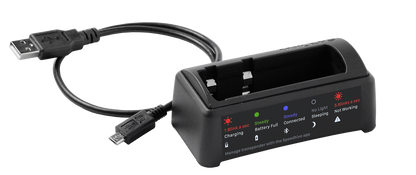

TR2 CHARGE CRADLE INCLUDING MICRO USB CABLE
-

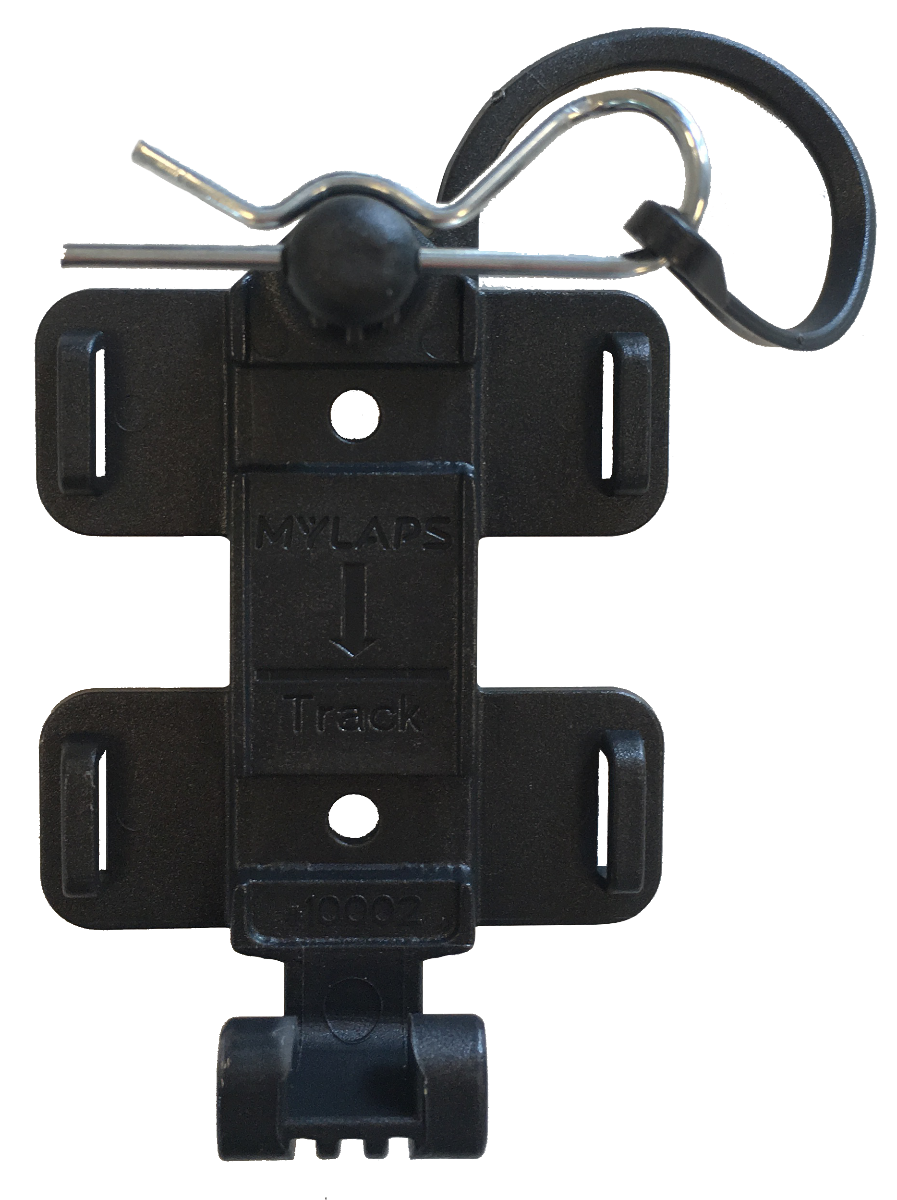

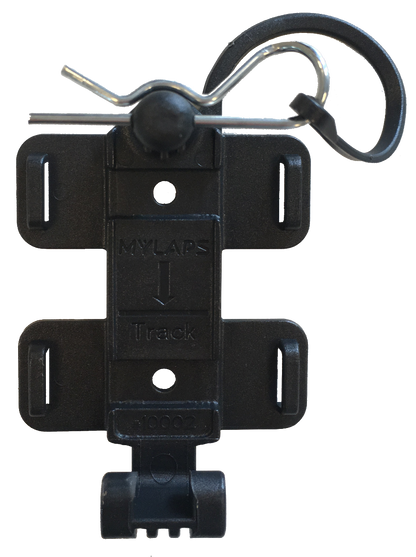

TR2 HOLDER (To mount to your Kart)
SPECIFICATIONS
|
Compatible with: |
MYLAPS X2 and TranX timing system |
|
Dimensions: |
73 x 50 x 22 mm ( 2.9 x 2 x 0.9 in.) |
|
Weight: |
110 gram (0,24 lb) |
|
Housing: |
Waterproof IP67 |
|
Temperature range: |
-20 to +50°C (-4 to +122°F) |
|
Transponder ID: |
Unique 8 digit number |
|
Input voltage: |
5 VDC |
|
Power consumption: |
max. 60mA @ 12VDC |
|
Battery back up: |
Max. 5 days |
|
Max. speed: |
120 km/h (75 mph) |
|
Transponder position: |
Max. mounting height 30 cm (0.9 ft.) |
|
Charging time: |
5 hours |
Get ready to race...
Make sure you follow these steps before you head for the track:

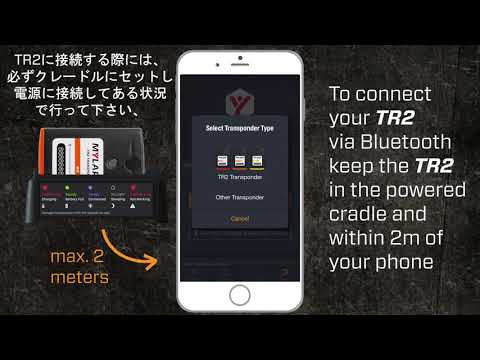

- Log into or create an account in the Speedhive App
- Register your TR2 Transponder
- Activate your included 1 year subscription
More information about activating and installation in the MYLAPS quick start guide.
Installation on your Kart
Use the included TR2 Holder to easily mount the TR2 Transponder on your kart. For the best accuracy, make sure to mount your TR2 Transponder as vertical as possible. On a Kart, do not mount the TR2 Transponder more than 30cm (0.9 ft) above the ground.
Timekeeping in kart racing is a tough challenge. That's why timekeepers, event organizers, and tracks from all over the world rely on MYLAPS technology. With a MYLAPS transponder you can use the free MYLAPS Speedhive app to check your personal results, follow races, and go faster!
