TERAFLEX 2.5" COIL LIFT SYSTEM with TERAFLEX 9550 All 4 Shocks - KIT BOX
The 2.5" Teraflex Coil Lift system with the excellent 9550 Shocks is the most popular kit that we fit most at ANGRi! (This kit excludes installation). A superb quality Teraflex coil suspension lift system with upgraded performance Teraflex Coils and shocks with maximum drivability and excellent off-road ability without the need for expensive driveline or control arm modifications.
Teraflex Suspension, Coils, Shocks and all necessary Teraflex hardware all come as standard in this Teraflex 2.5" Coil and shock lift system, with a range of personalised upgrade options. Needless to say that this is the RHD specific version for the SA market.
Available in 2Dr and 4Dr versions. (For upgraded tyre size up to 35"diameter).. and also available as an 'Outback' version for Heavier 4dr builds, larger towing capacity and Diesel JKUs.
Every TeraFlex suspension system is engineered with drivability and performance in mind. Properly developed suspension geometry, roll center, and load tuning ensures that all factory stability controls remain functional and within the parameters that Jeep originally engineered into the vehicle.

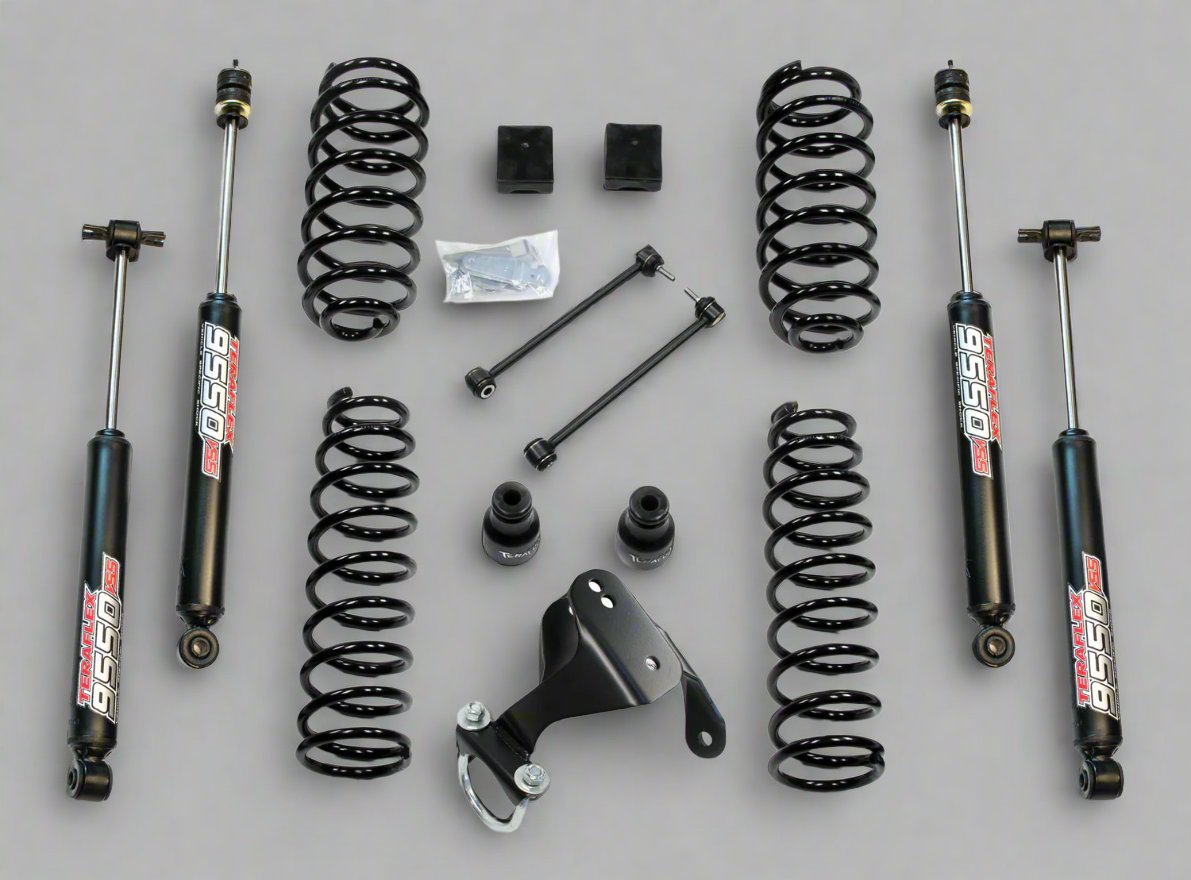

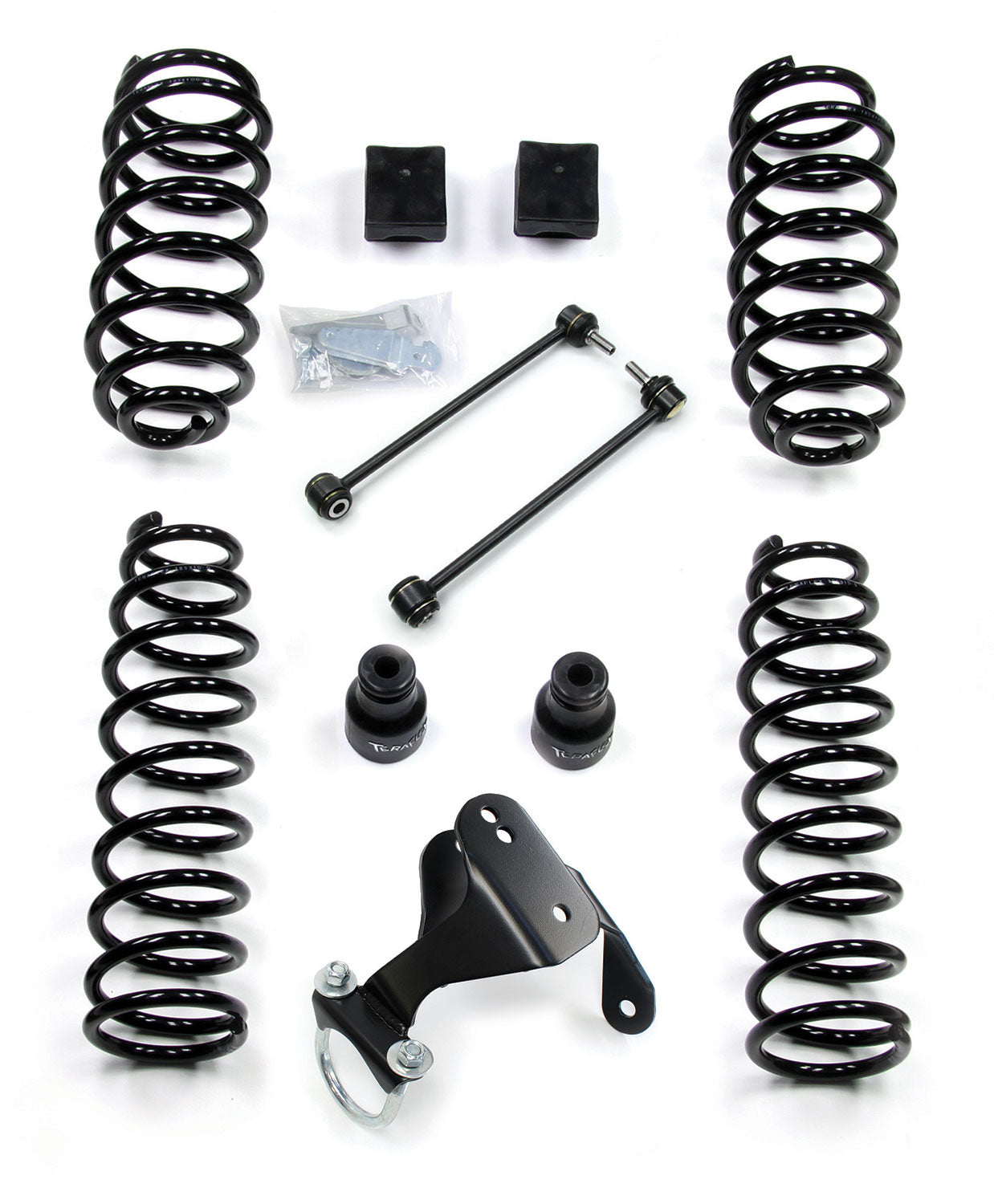

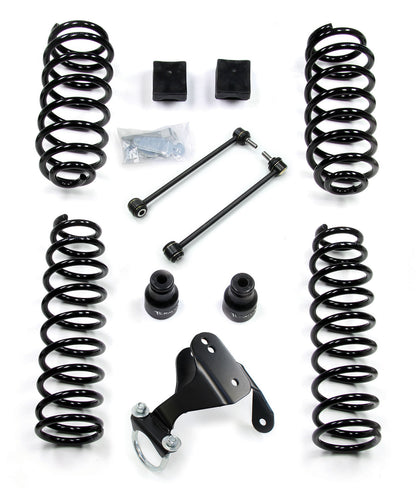

Teraflex 2.5" Lift Kit
Vehicle Specific (2dr/4dr) 2.5" Front and Rear replacement Coil springs (Outback Coils also available for Diesels and heavier builds)
Front and Rear Bump stop extensions
Rear track bar realignment bracket
Rear Sway bar links and all connecting hardware (existing rears go to front)
Brake line relocating brackets (Rear)

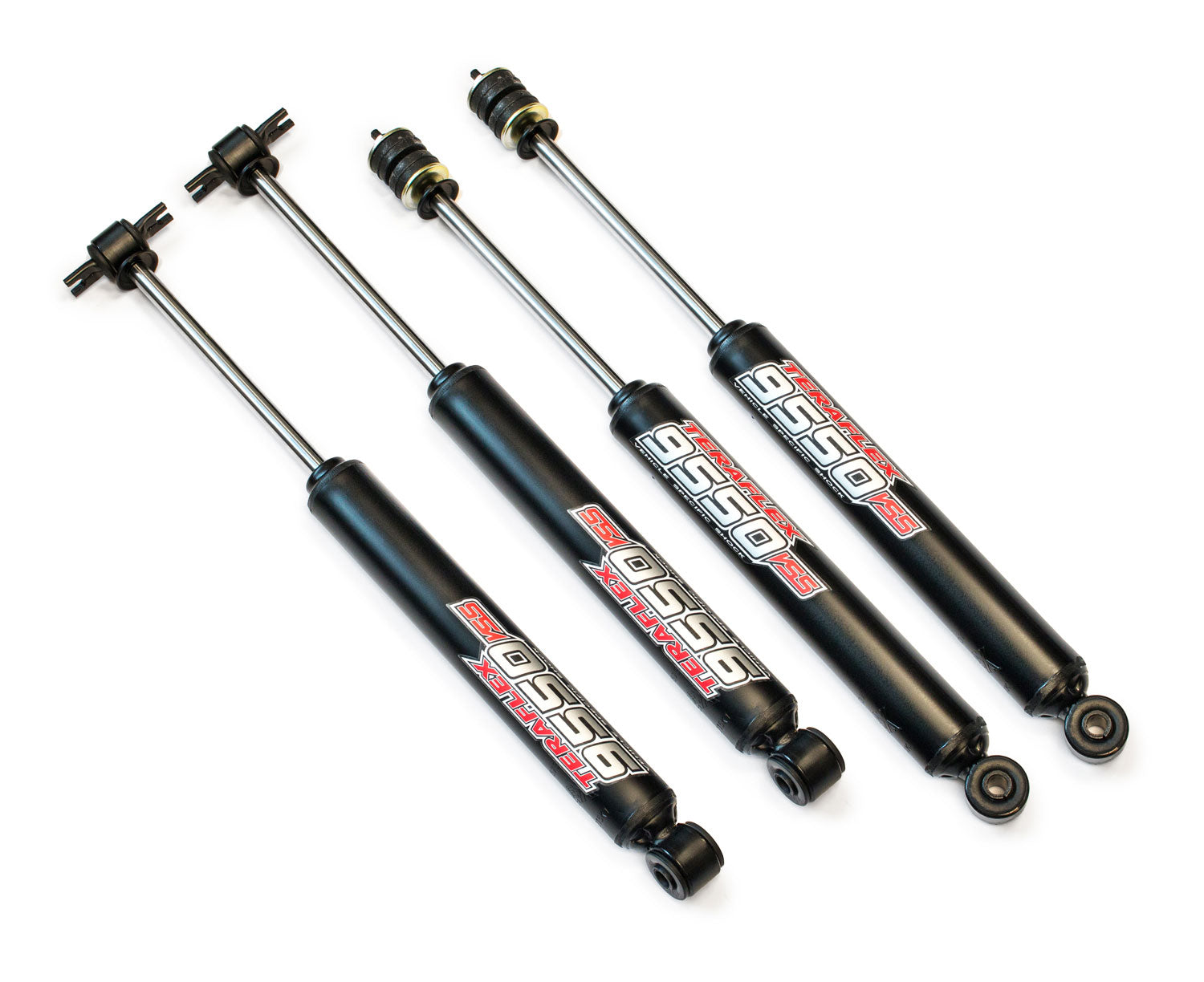

9550 VSS SHOCKS JK/JKU
Designed specifically for either the JK/JKU Wrangler, TeraFlex 9550 VSS (Vehicle Specific Shocks) Twin-Tube Shocks are engineered, valved, and tuned for extreme off-road performance while retaining a smooth highway ride. Additionally, a proprietary inhouse velocity valve is tuned to react in sync with TeraFlex suspension systems and lift kits making them the perfect upgrade for your lifted Jeep.
The twin-tube design, oversized external tube with e-dipped finish, triple-chrome plated rod with oil block and seal, internal travel stop limiter, premium quality rubber bushings, and Jeep specific mounting contributes to the 9550 VSS Twin-Tube Shock’s performance, durability, and comfort.
ENHANCE your 2.5" lift by moving up to Falcon 2.1 Shocks and Steering Stabiliser, adding a 1.25" Body Lift kit, Front Disconnects or upgrade the coils for stiffer 'Outback' Coils for a firmer ride and more load weight and towing capacity on your 4dr. Teraflex Front Brake Line Retainers are also recommended with any lift to keep brake lines and ABS lines clear of shocks and coils at the front of the vehicle.
The TeraFlex JK 2.5” Suspension Lift Kit is an ultra performance oriented lift kit that provides amazing highway drivability with very capable off road performance. Drivability and performance are the most important factors that are engineered and built into every TeraFlex lift kit.
Properly developed suspension geometry, roll center, and load tuning ensure that all factory stability controls remain functional and within the parameters that Jeep originally engineered into the vehicle. TeraFlex kits drive straight and will crawl anything, getting you there and back!
This kit will allow you to run up to a 35” tire (aftermarket wheels with 4.5” backspacing or less are required). If stock wheels are used, a minimum of 25mm wheels spacers should be used. Fits all JK and JKU Wrangler models including Rubicon.
It is recommended to fit the Teraflex 9550 sterling stabiliser when fitting this kit and adding bigger tyres. Be sure to choose the correct kist for the model of your Wrangler!..... Either 2DR, 4DR or Heavy Build/Diesel 4Dr (Outback Version)
4DR KIT: 1351360 + 1545100 (Shocks)

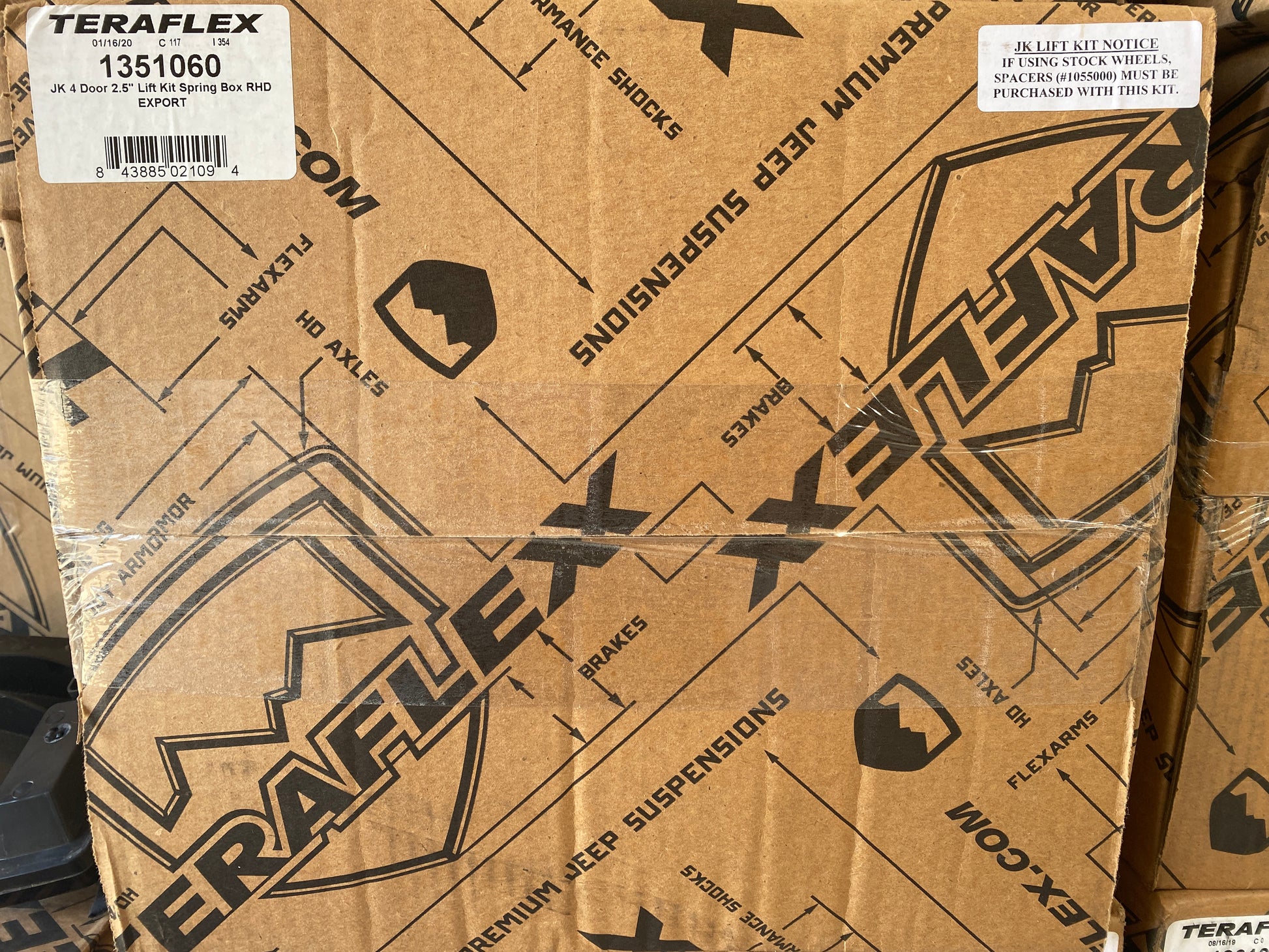

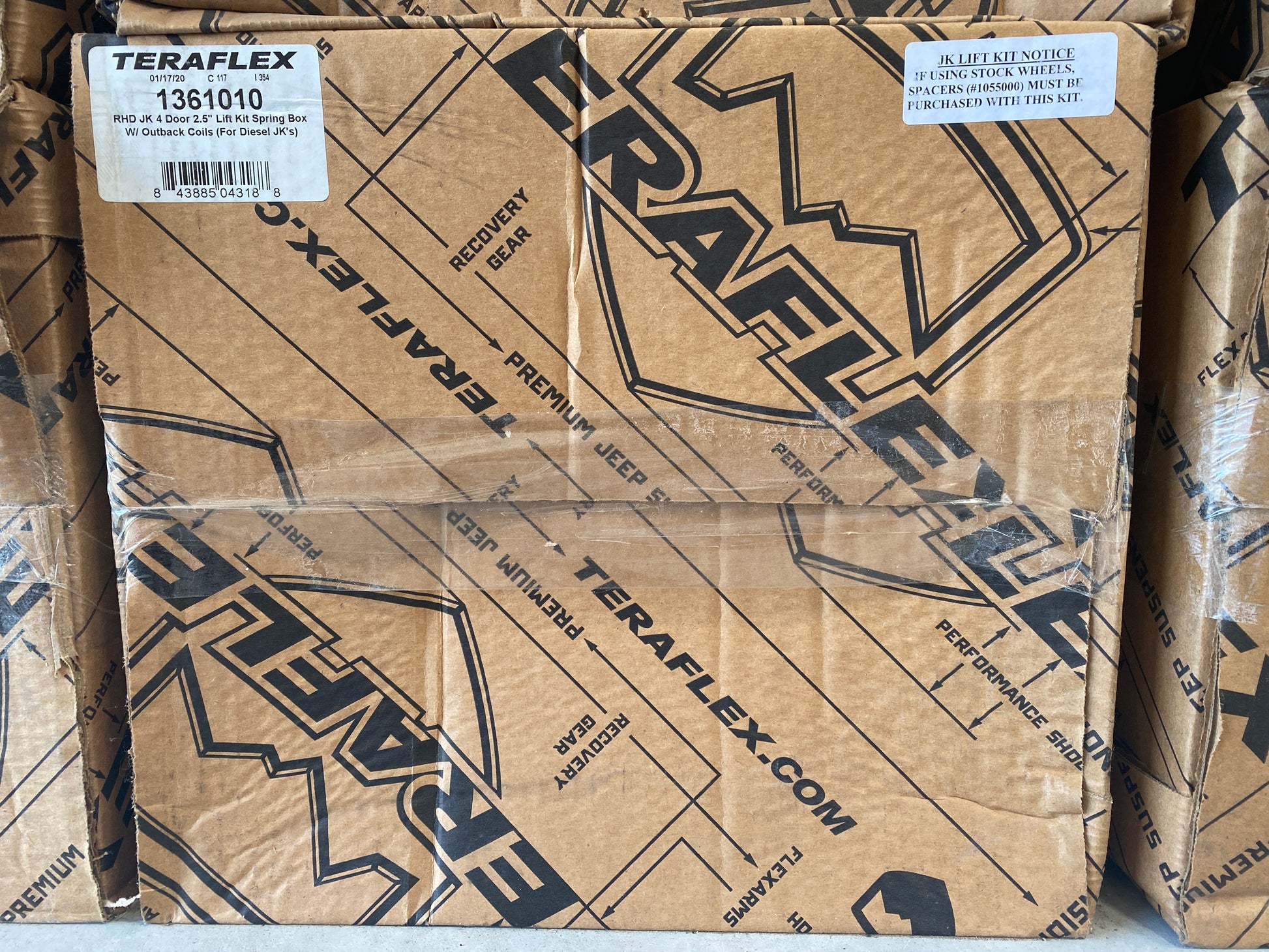

4DR OUTBACK KIT: 1361010 + 1545100 (Shocks)
2DR KIT: 1351062 + 1545100 (Shocks)
Excludes Installation (Kit boxes only)
