TERAFLEX 2.5" COIL LIFT SYSTEM - KIT BOX
The 2.5" Teraflex Coil Lift system is the most popular kit that everyone wants to have installed at ANGRi! A superb quality Teraflex coil suspension lift system with upgraded performance Teraflex Coils With maximum drivability and excellent off-road ability without the need for expensive driveline or control arm modifications.
Teraflex Suspension, Coils and all necessary Teraflex hardware all come as standard in this Teraflex 2.5" Coil lift system, with a range of personalised upgrade options. Needless to say that this is the RHD specific version for the SA market.
Available in 2Dr and 4Dr versions. (For upgraded tyre size up to 35"diameter).. and also available as an 'Outback' version for Heavier builds, larger towing capacity and Diesel JKUs.
Every TeraFlex suspension system is engineered with drivability and performance in mind. Properly developed suspension geometry, roll center, and load tuning ensures that all factory stability controls remain functional and within the parameters that Jeep originally engineered into the vehicle.

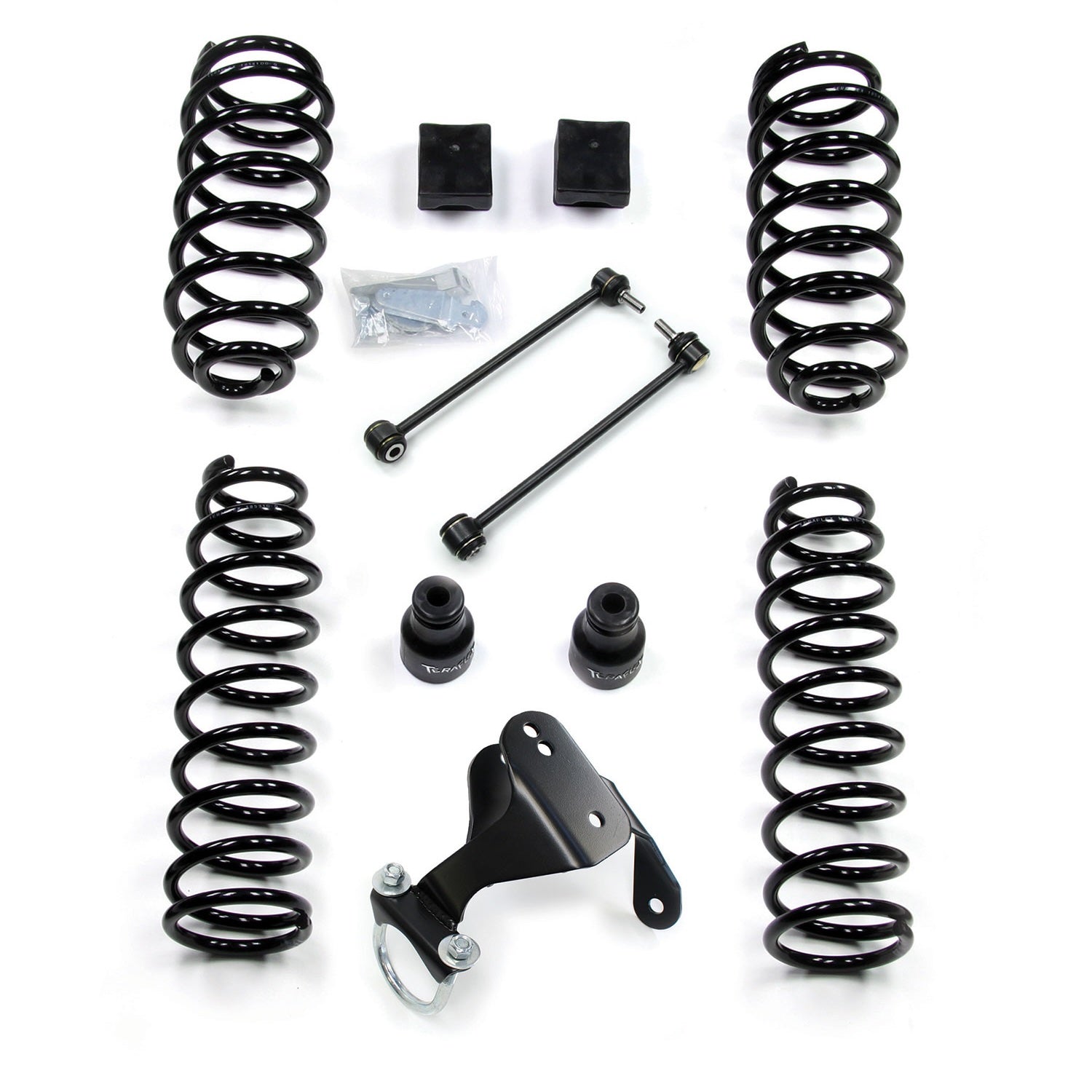

Teraflex 2.5" Lift Kit
Vehicle Specific 2.5" Front and Rear replacement Coil springs (Outback Coils also available for Diesels and heavier builds)
Front and Rear Bump stop extensions
Rear track bar realignment bracket
Rear Sway bar links and all connecting hardware (existing rears go to front)
Brake line relocating brackets (Rear)
To fit this kit, you will need either 2.5" Teraflex shock extensions (Front and Rear) to extend your OEM shocks, 2.5" Teraflex 9550 Shocks, 1.5"-2.5" Falcon 2.1 Shocks or alternative suitable length shocks for this lift kit).
ENHANCE your 2.5" lift by moving up to Falcon 2.1 Shocks and Steering Stabiliser, adding a 1.25" Body Lift kit, Front Disconnects or upgrade the coils for stiffer 'Outback' Coils for a firmer ride and more load weight and towing capacity. Teraflex Front Brake Line Retainers are recommended with any lift to keep brake lines and ABS lines clear of shocks and coils at the front of the vehicle.
The TeraFlex JK 2.5” Suspension Lift Kit is an ultra simple performance oriented lift kit that provides amazing highway drivability with very capable off road performance. Drivability and performance are the most important factors that are engineered and built into every TeraFlex lift kit.
Properly developed suspension geometry, roll center, and load tuning ensure that all factory stability controls remain functional and within the parameters that Jeep originally engineered into the vehicle. TeraFlex kits drive straight and will crawl anything, getting you there and back! T
This kit will allow you to run up to a 35” tire (aftermarket wheels with 4.5” backspacing or less are required). If stock wheels are used, a minimum of 25mm wheels spacers should be used. Fits all JK Wrangler models including Rubicon.

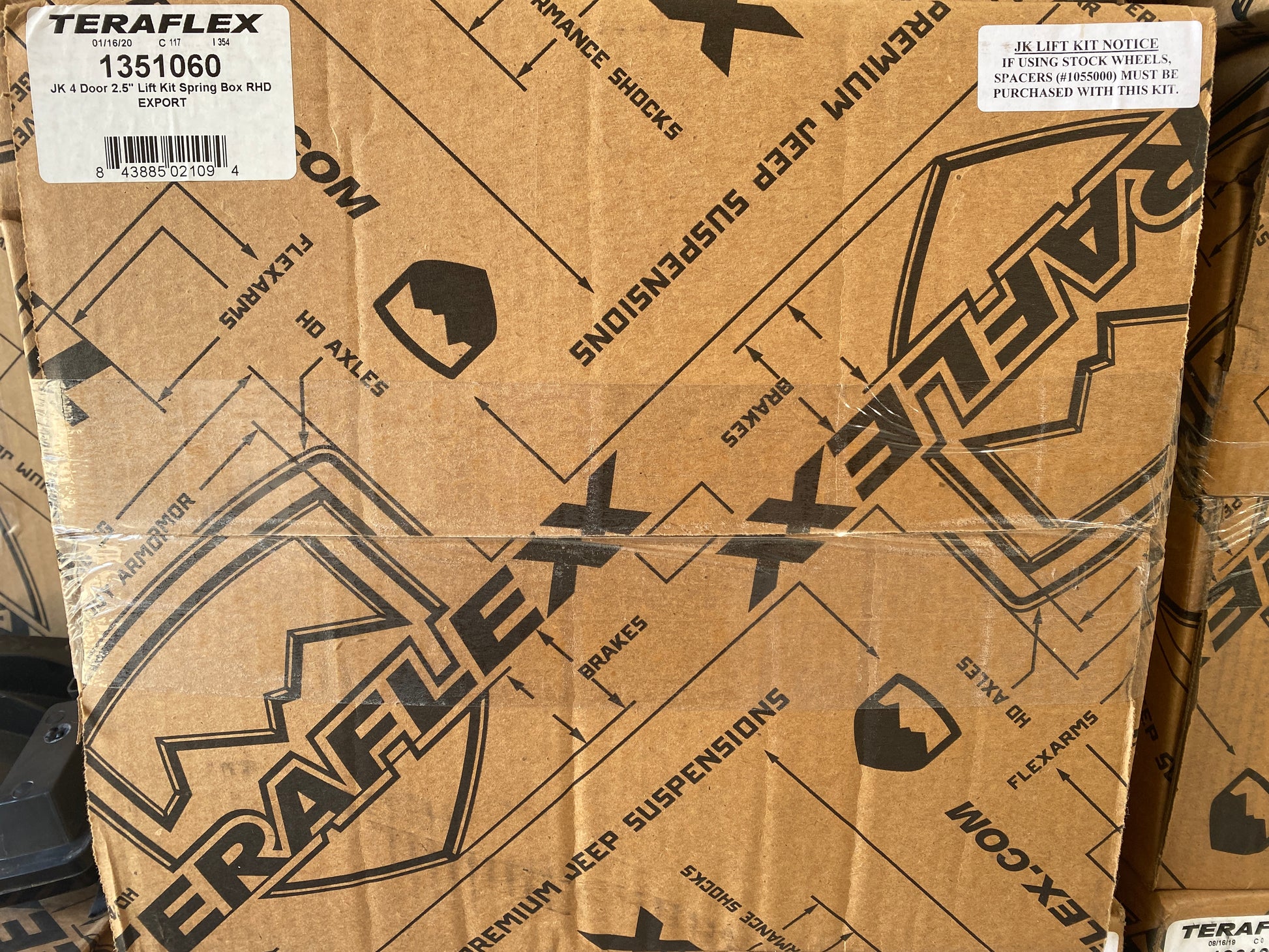

4DR KIT: 1351360

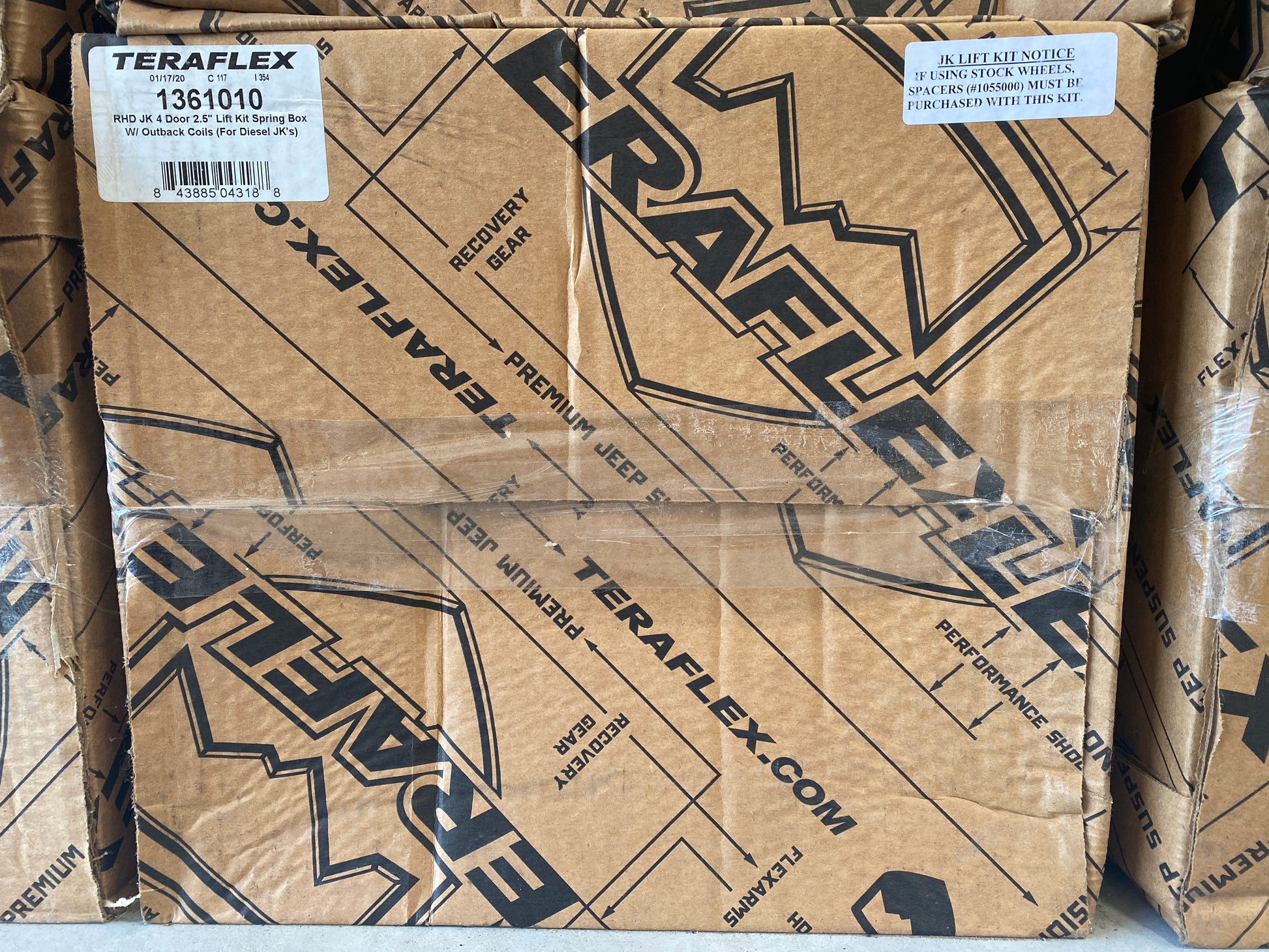

4DR OUTBACK KIT: 1361010
2DR KIT: 1351062
