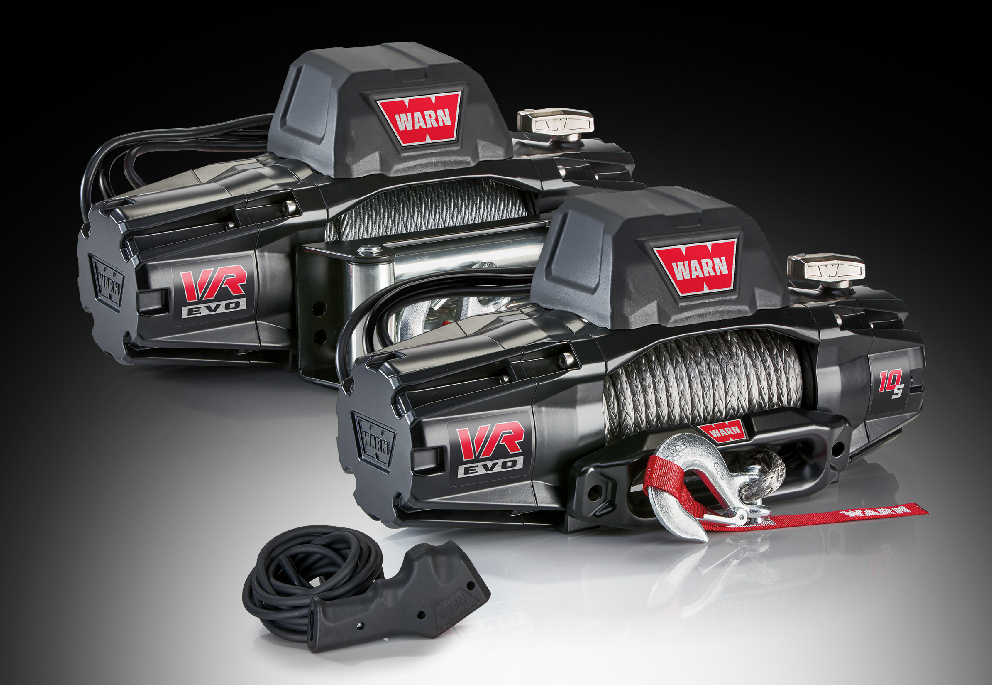

WARN VR EVO 10 WINCH (Steel Cable) 103252 - Retail boxed
(Excluding Installation)
The VR10 is the ideal minimum strength winch for a 4dr Jeep Wrangler JKU
Ideal weight capacity and line speed for 1/2-ton pickups, Jeeps, and larger SUVs. The VR EVO 10 and 10-S feature IP68-rated waterproof construction, an ultra-reliable Albright® contactor inside a relocatable control pack, and a state-of-the-art, two-in-one remote for added ease of use and versatility. With it’s fast line-speed and lower amp draw, the VR EVO series of winches are the hardest-working standard-duty winches we’ve ever made, with tactical styling that looks great up front and at a price that won’t pull you out of your budget.
A powerful series-wound motor and planetary gear train deliver faster line speed under load, with lower amp draw
IP68-rated waterproof winch construction keeps the elements out
High-performance Albright contactor delivers maximum reliability
Control packs can be relocated for low-profile installations
Durable, one-piece cast-aluminum tie-plate for added strength and durability
Two-in-one remote with wired AND wireless options for ease of use and versatility
Available with wire or synthetic rope
Limited lifetime warranty for mechanical parts and 7 years on the electrical
Designed, engineered, and tested by WARN engineers in the U.S.A.
SPECIFICATIONS
Winch Model: VR EVO 10, VR EVO 10–S
Parts Numbers: 103252 (VR EVO 10), 103253 (VR EVO 10-S)
Rated Line Pull: 10000 lbs. (4536 kg)
Motor: 12V DC, series wound
Electrical Controls: Albright Contactor
Remote Control: 2-in-1 plug-in remote with wireless capability and 11.5’ (3.5m) lead
Gear Train: 3-stage planetary
Gear Ratio: 218:1
Clutch (freespooling): Rotating ring gear clutch
Brake: Spring Brake
Drum Diameter/ Length: Steel and Synthetic: 2.5’’/9.0’’ (6.73cm/23cm)
Weight: Shipping Steel: 91.93 lbs. (41.7 kg) Shipping Synthetic: 72.40 lbs. (32.84 kg) Net Product Steel: 74.74 lbs. (33.9 kg) Net Product Synthetic: 55.20 lbs. (25.04 kg)
Rope: Steel: .354” x 90’ (9mm x 27.4m) Synthetic: 3/8” x 90’ (9.5mm x 27.4m)
Fairlead: Steel: Roller, Synthetic: Die Cast Hawse
Recommended Battery: 650 CCA min. for winching
Battery Leads: 0.98’’ x 6.5’ (25mm x 2m)
Finish: Powder coating over primer undercoating
Warranty: Limited lifetime

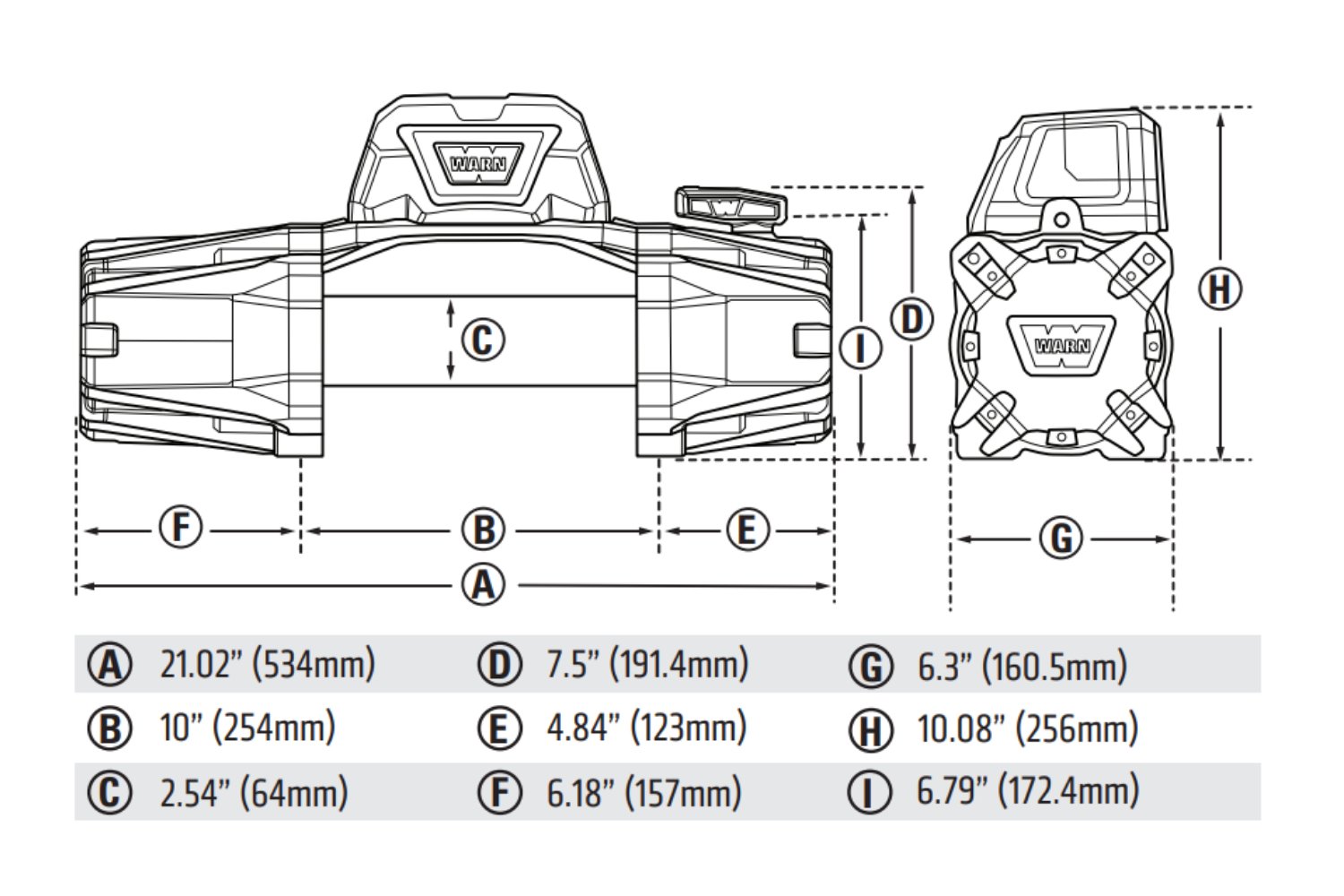

Winch Dimensions: 534mm L x 160.5mm D x 256mm H (21” L x 6.3” D x 10.1” H)
Mounting Bolt Pattern: 254mm x 114.3mm (10.0” x 4.5”)
Comes with Steel cable and roller fairlead
Synthetic winch rope is optionally available from ANGRiJeep
